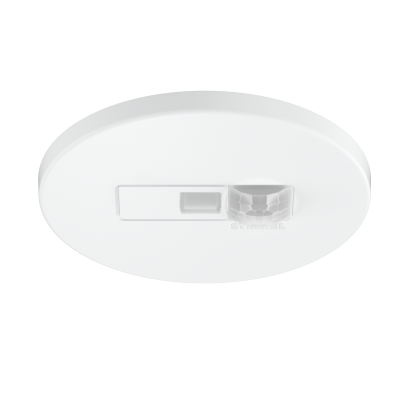

Micro Presence Detector

Micro Presence Detector
Micro Presence Detector
Product Code : IRMICRO
Brand Name : STEINEL
Product Description

 Presence detector IR Micro

Technical Specifications :

  • European Article Number (EAN) : 4007841009748
  • Dimensions (w x h x d) : Ø 80 x 20,5 mm
  • Model : Presence detector
  • Voltage : DALI bus voltage
  • Current consumption : 2 DALI user
  • Application : inside buildings Installation Ceiling
  • Recommended installation height : 2.8 m
  • Detection angle : 360o with 90o angle of aperture
  • Creep-under protection: Yes
  • Square presence detection zone: 4 x 4 m max. (16m²)
  • Square radial detection zone: 4 x 4 m max. (16m²)
  • Square tangential detection zone: max. 6 x 6 m (36 m²)
  • Settings via LiveLink app
  • Response value luminosity: 2-2000 lx
  • Teach-function for response value luminosity: Yes
  • Time setting: IQ mode (automatic adjustment to usage profile) 1 min. - 60 min.

User-friendly functions:-

  • Motion detection, Semi-automatic / fully automatic mode
  • Brightness measurement
  • Constant-lighting control
  • Daytime operation
  • Teach mode
  • Test mode
  • Reach adjustment
  • Degree of protection (IP): IP20
  • Temperature: 0-40 oC
  • Housing
  • UV-resistant plastic
  • Model
  • LiveLink
